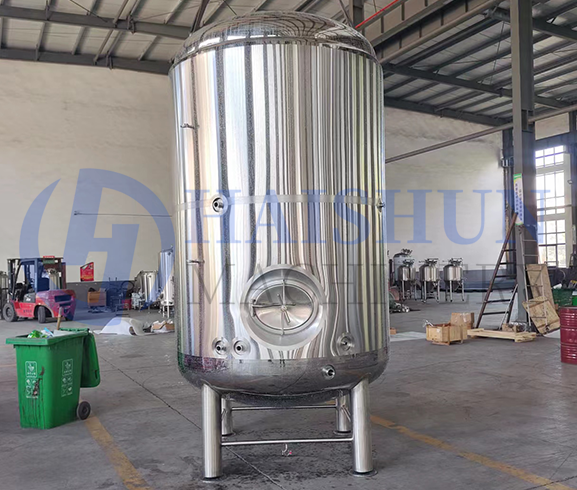

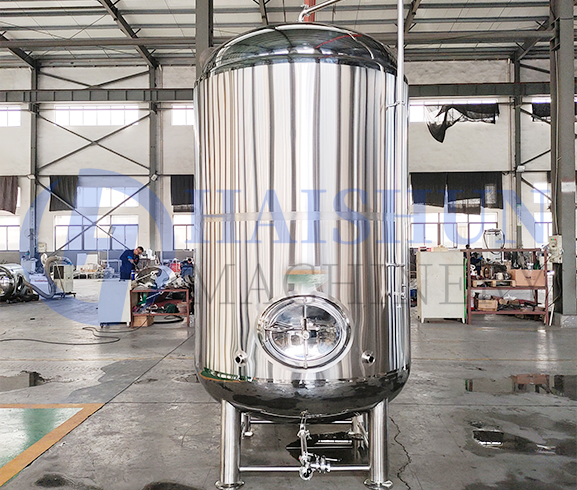

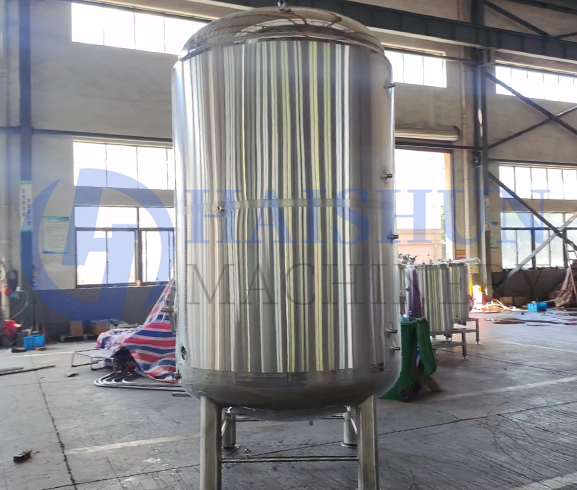

More than 30BBL Brite Tanks
More than 30BBL Brite Tanks
More than 30BBL Brite Tanks
More than 30BBL Brite Tanks
More than 30BBL Brite Tanks
More than 30BBL Brite Tanks
More than 30BBL Brite Tanks
More than 30BBL Brite Tanks
More than 30BBL Brite Tanks
More than 30BBL Brite Tanks

More than 30BBL Brite Tanks

High Quality SS304 for the whole tank

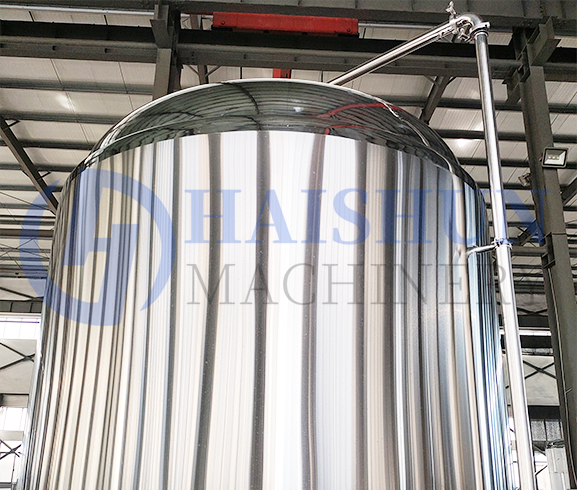

Dish Cover at top & bottom

Average 10% Head Space

Dimple jacket for glycol cooling

50mm(2”) Polyurethane insulation

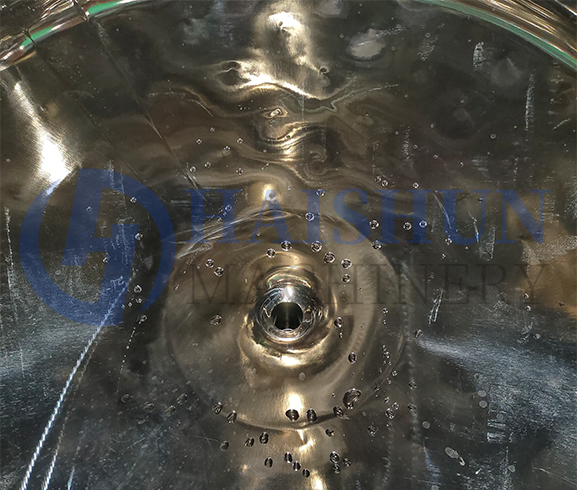

Interior to be passivated (2B) or Mirror polished (Ra≤0.22um)

Equipment Introduction

Fermentation Tank


Our Brite Tank available from 1 Barrel to 100 Barrels w/ an average 10% Head Space.


Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.  We can custom fabricate any tank to meet your brewery’s space and height restrictions.


NAME BRAND, HIGH QUALITY VALVES AND FITTINGS WITH EVERY TANK!



Feature| High Standard Manufactured


• High Quality SS304 for the whole tank


• Dish Cover at top & bottom


• Average 10% Head Space


• Dimple jacket for glycol cooling


• 50mm(2”) Polyurethane insulation


• Interior to be passivated (2B) or Mirror polished (Ra≤0.22um)


High Quality Fittings


Sample Valve


Sahdowless Side Manway


Pressure relief/vacuum valve


Temp. sensor / thermometer


Carbonation Stone


Bottom outlet with butterfly valve


Spraying Ball with down tube


Stainless pipe legs with adjustable footpads



Equipment Project
ModelCapacityCylinder IDInsulationOAH
HS-BBT-5BBL5BBL850mm50mm1790mm
HS-BBT-7BBL7BBL1050 mm50mm1910mm
HS- BBT -10BBL10BBL1100 mm50mm2360mm
HS- BBT -15BBL15BBL1300 mm50mm2610mm
HS- BBT -20BBL20BBL1350 mm50mm2910mm
HS- BBT -30BBL30BBL1500 mm50mm3340mm
HS- BBT -40BBL40BBL1700 mm50mm3420mm
HS- BBT -50BBL50BBL1750 mm50mm3800mm
HS- BBT -60BBL60BBL1800 mm50mm4160mm
HS- BBT -80BBL80BBL2100 mm50mm4250mm
HS- BBT -100BBL100BBL2200 mm50mm4650mm
Custom fabricate any tanks to meet your brewery’s space and height restrictions.
