•High Quality SS304 for the whole tank
•60 / 70 degree cone bottom, with an average of 25% head Space.
•Average 25% Head Space
•Dimple jackets for Glycol cooling
•50mm(2”) Polyurethane insulation
•Interior to be passivated (2B) or Mirror polished (Ra≤0.22um)
•Exterior surface to brushed, #4 finish
•580x480mm Side manway, shadowless
•Dry hop inlet at top;

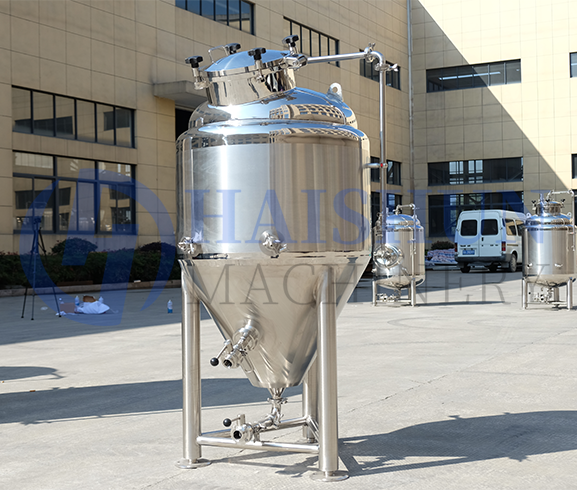

Fermentation Tank
Our Fermenter available from 1 Barrel to 100 Barrels w/ an average 25% Head Space. Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet your brewery’s space and height restrictions.
NAME BRAND, HIGH QUALITY VALVES AND FITTINGS WITH EVERY TANK!
Feature| High Standard Manufactured
• 60 / 70 degree cone bottom, with an average of 25% head Space.
• Average 25% Head Space
• Dimple jackets for Glycol cooling
• 50mm(2”) Polyurethane insulation
• Interior to be passivated (2B) or Mirror polished (Ra≤0.22um)
• Exterior surface to brushed, #4 finish
• 580x480mm Side manway, shadowless
• Dry hop inlet at top;
High Quality Fittings
Sample Valve;
Side Manway
Pressure relief /vacuum valve
Temp. Probe w/ thermometer
Rotating racking arm with butterfly valve
Bottom outlet with butterfly valve
Spraying Ball with down tube
Stainless pipe legs with adjustable footpads
| Model | Capacity | Cylinder ID | Insulation | OAH |
| HS-FV-5BBL | 5BBL | 850mm | 50mm | 2240mm |
| HS-FV-7BBL | 7BBL | 1000 mm | 50mm | 2530mm |
| HS-FV-10BBL | 10BBL | 1150 mm | 50mm | 2670mm |
| HS-FV-15BBL | 15BBL | 1250 mm | 50mm | 3250mm |
| HS-FV-20BBL | 20BBL | 1400 mm | 50mm | 3400mm |
| HS-FV-30BBL | 30BBL | 1600 mm | 50mm | 3740mm |
| HS-FV-40BBL | 40BBL | 1750 mm | 50mm | 4040mm |
| HS-FV-50BBL | 50BBL | 1750 mm | 50mm | 4770mm |
| HS-FV-60BBL | 60BBL | 1150 mm | 50mm | 2670mm |
| HS-FV-80BBL | 80BBL | 2100 mm | 50mm | 5300mm |
| HS-FV-100BBL | 100BBL | 2200 mm | 50mm | 5850mm |
| Custom fabricate any tanks to meet your brewery’s space and height restrictions. | ||||
